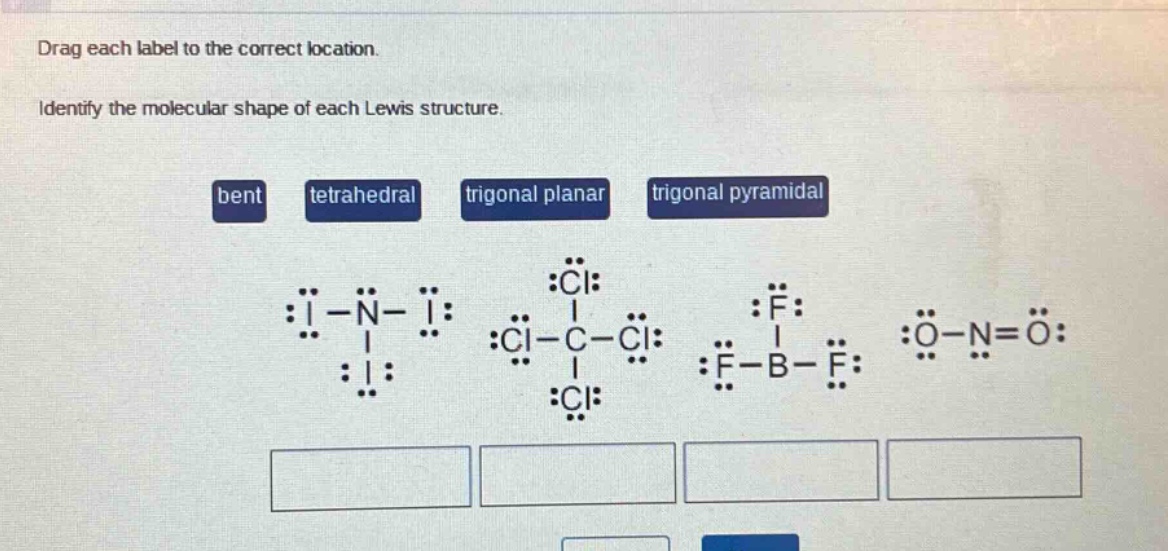

drag each label to the correct location. identify the molecular shape of each lewis structure. bent…

drag each label to the correct location. identify the molecular shape of each lewis structure. bent tetrahedral trigonal planar trigonal pyramidal :i - n - i: :cl - c - cl: :f - b - f: :o - n = o:

drag each label to the correct location. identify the molecular shape of each lewis structure. bent tetrahedral trigonal planar trigonal pyramidal :i - n - i: :cl - c - cl: :f - b - f: :o - n = o:

Answer

Explanation:

Step1: Analyze first structure

The central - nitrogen atom in (NI_3) has 3 bonding pairs and 1 lone pair. According to VSEPR theory, it has a trigonal - pyramidal shape.

Step2: Analyze second structure

The central - carbon atom in (CCl_4) has 4 bonding pairs and 0 lone pairs. According to VSEPR theory, it has a tetrahedral shape.

Step3: Analyze third structure

The central - boron atom in (BF_3) has 3 bonding pairs and 0 lone pairs. According to VSEPR theory, it has a trigonal - planar shape.

Step4: Analyze fourth structure

The central - nitrogen atom in (NO_2) has 2 bonding pairs and 1 lone pair. According to VSEPR theory, it has a bent shape.

Answer:

trigonal pyramidal, tetrahedral, trigonal planar, bent
