drag each quantity to the correct location on the table. complete the table of bond energies and bond…

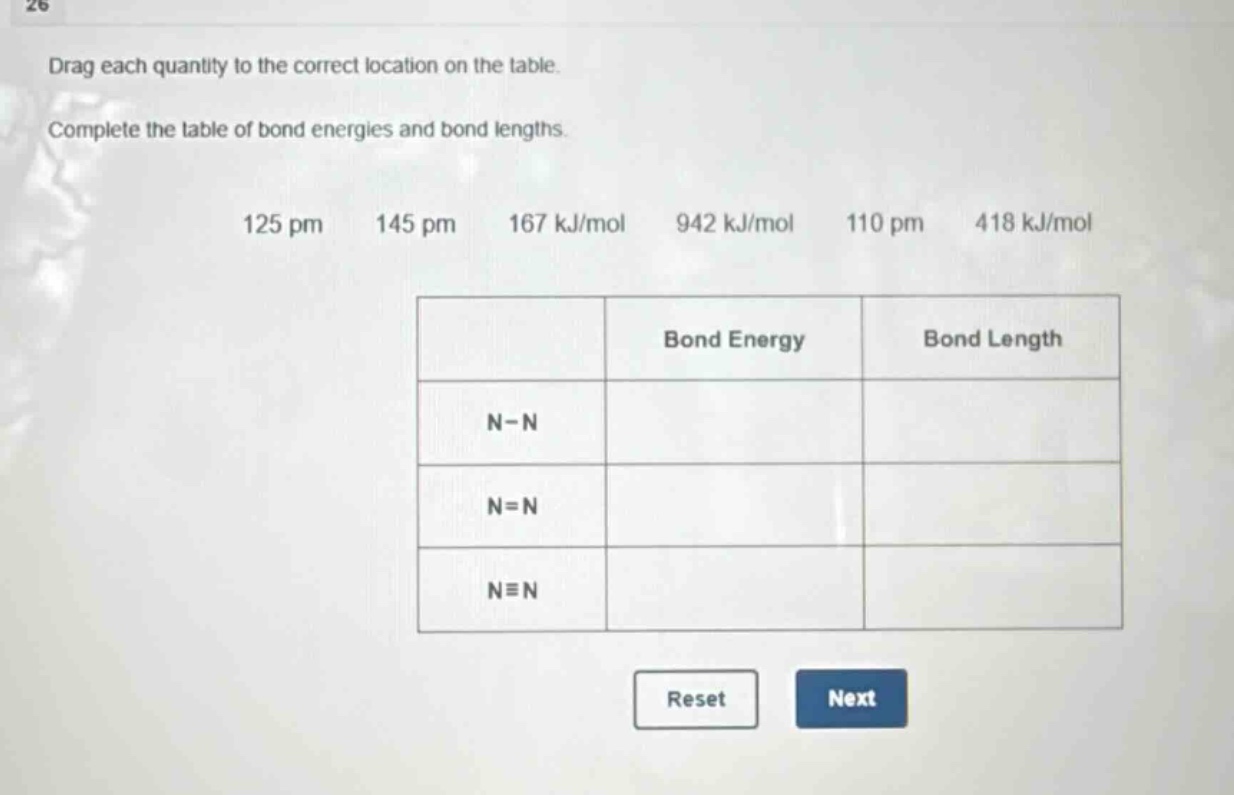

drag each quantity to the correct location on the table. complete the table of bond energies and bond lengths. 125 pm 145 pm 167 kj/mol 942 kj/mol 110 pm 418 kj/mol bond energy bond length n - n n = n n ≡ n reset next
Answer
Explanation:
Step1: Recall bond - energy and bond - length trends
Single bonds have the longest bond lengths and the lowest bond energies, double bonds have intermediate values, and triple bonds have the shortest bond lengths and the highest bond energies.
Step2: Match values for N - N
The single bond N - N has a bond energy of 167 kJ/mol and a bond length of 145 pm.
Step3: Match values for N = N
The double bond N = N has a bond energy of 418 kJ/mol and a bond length of 125 pm.
Step4: Match values for N≡N
The triple bond N≡N has a bond energy of 942 kJ/mol and a bond length of 110 pm.
Answer:
| Bond Energy | Bond Length | |
|---|---|---|
| N - N | 167 kJ/mol | 145 pm |
| N = N | 418 kJ/mol | 125 pm |
| N≡N | 942 kJ/mol | 110 pm |
