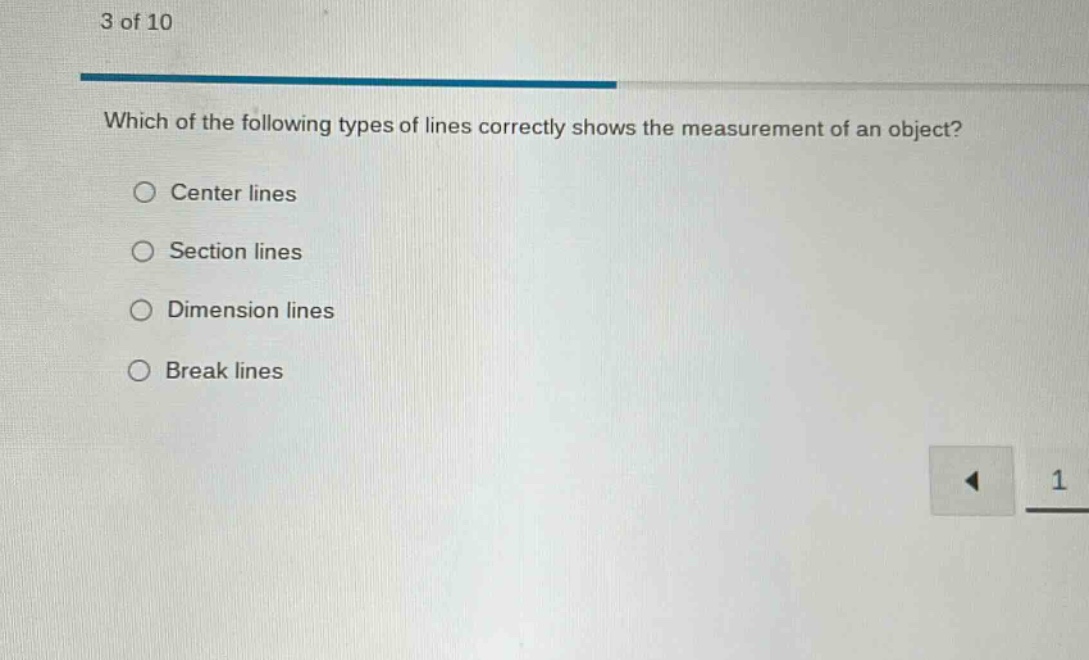

3 of 10\nwhich of the following types of lines correctly shows the measurement of an object?\n○ center…

3 of 10\nwhich of the following types of lines correctly shows the measurement of an object?\n○ center lines\n○ section lines\n○ dimension lines\n○ break lines

3 of 10\nwhich of the following types of lines correctly shows the measurement of an object?\n○ center lines\n○ section lines\n○ dimension lines\n○ break lines

Answer

Brief Explanations:

Center lines show the center - axis of symmetric objects. Section lines are used to show the cut - surface in sectional views. Dimension lines are specifically used to indicate the measurements (length, width, height etc.) of an object. Break lines are used to shorten the length of an object in a drawing without changing its actual dimensions.

Answer:

C. Dimension lines
