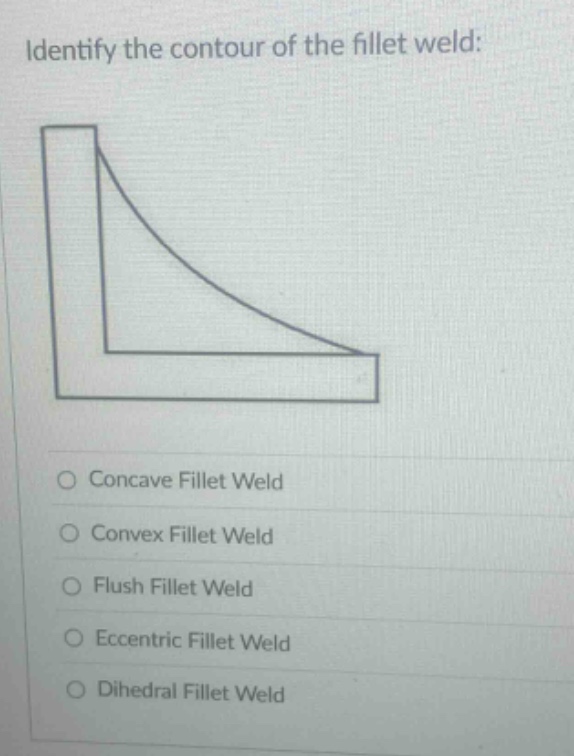

identify the contour of the fillet weld: concave fillet weld convex fillet weld flush fillet weld eccentric fillet weld dihedral fillet weld
Answer
Brief Explanations:
A concave fillet weld has a curved - in surface. The given contour shows a curved - in shape, which is characteristic of a concave fillet weld. Convex fillet welds have a bulging surface, flush fillet welds are flat, and eccentric and dihedral are not related to the basic contour shapes like this.
Answer:
Concave Fillet Weld
