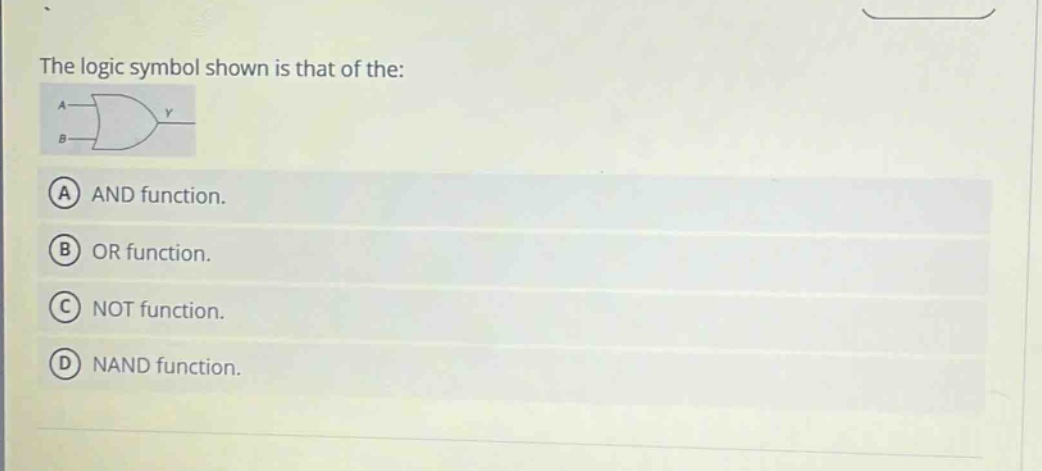

the logic symbol shown is that of the: a and function. b or function. c not function. d nand function.
the logic symbol shown is that of the: a and function. b or function. c not function. d nand function.
Answer
Brief Explanations:
The given symbol is a standard OR - gate symbol in digital logic. In an OR function, the output Y is 1 if either input A or input B (or both) is 1.
Answer:
B. OR function.
