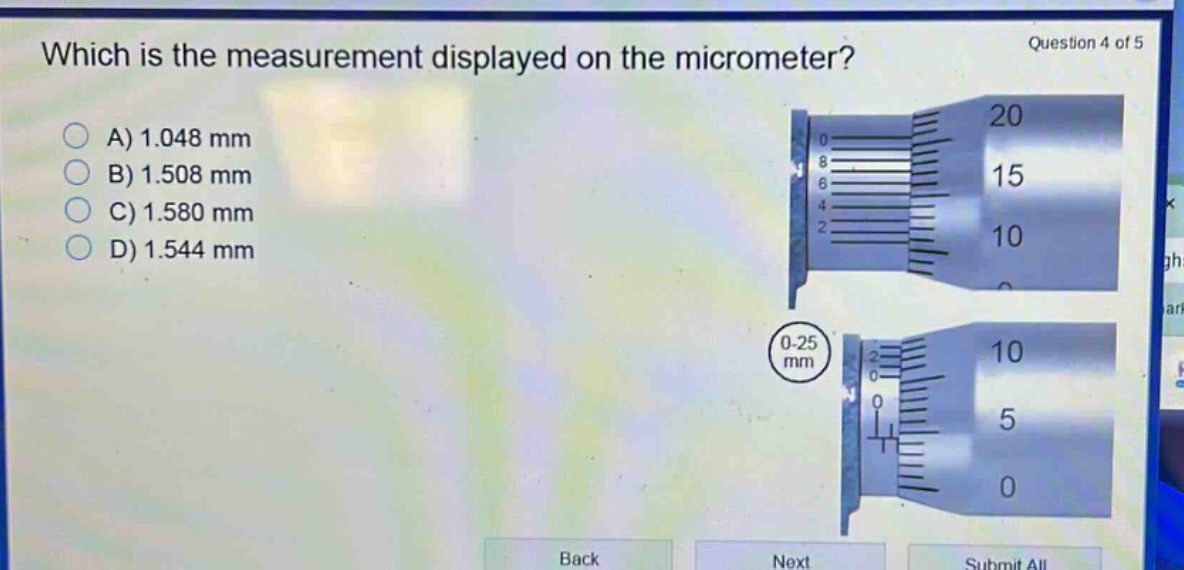

which is the measurement displayed on the micrometer? question 4 of 5 a) 1.048 mm b) 1.508 mm c) 1.580 mm d)…

which is the measurement displayed on the micrometer? question 4 of 5 a) 1.048 mm b) 1.508 mm c) 1.580 mm d) 1.544 mm 0 - 25 mm back next submit all

which is the measurement displayed on the micrometer? question 4 of 5 a) 1.048 mm b) 1.508 mm c) 1.580 mm d) 1.544 mm 0 - 25 mm back next submit all

Answer

Explanation:

Step1: Read the main sleeve scale reading.

The sleeve shows 1 full millimeter mark and one half-millimeter mark past the 1 mm mark. $$ \text{Sleeve reading} = 1.5 , \text{mm} $$

Step2: Read the thimble scale reading.

The thimble scale aligns with the main scale line at the 8th division. Each division is 0.01 mm. $$ \text{Thimble reading} = 8 \times 0.01 , \text{mm} = 0.08 , \text{mm} $$

Step3: Add the sleeve and thimble readings.

Add the readings from Step 1 and Step 2 to get the total measurement. $$ \text{Total measurement} = 1.5 , \text{mm} + 0.08 , \text{mm} = 1.58 , \text{mm} $$

Answer:

C) 1.580 mm
