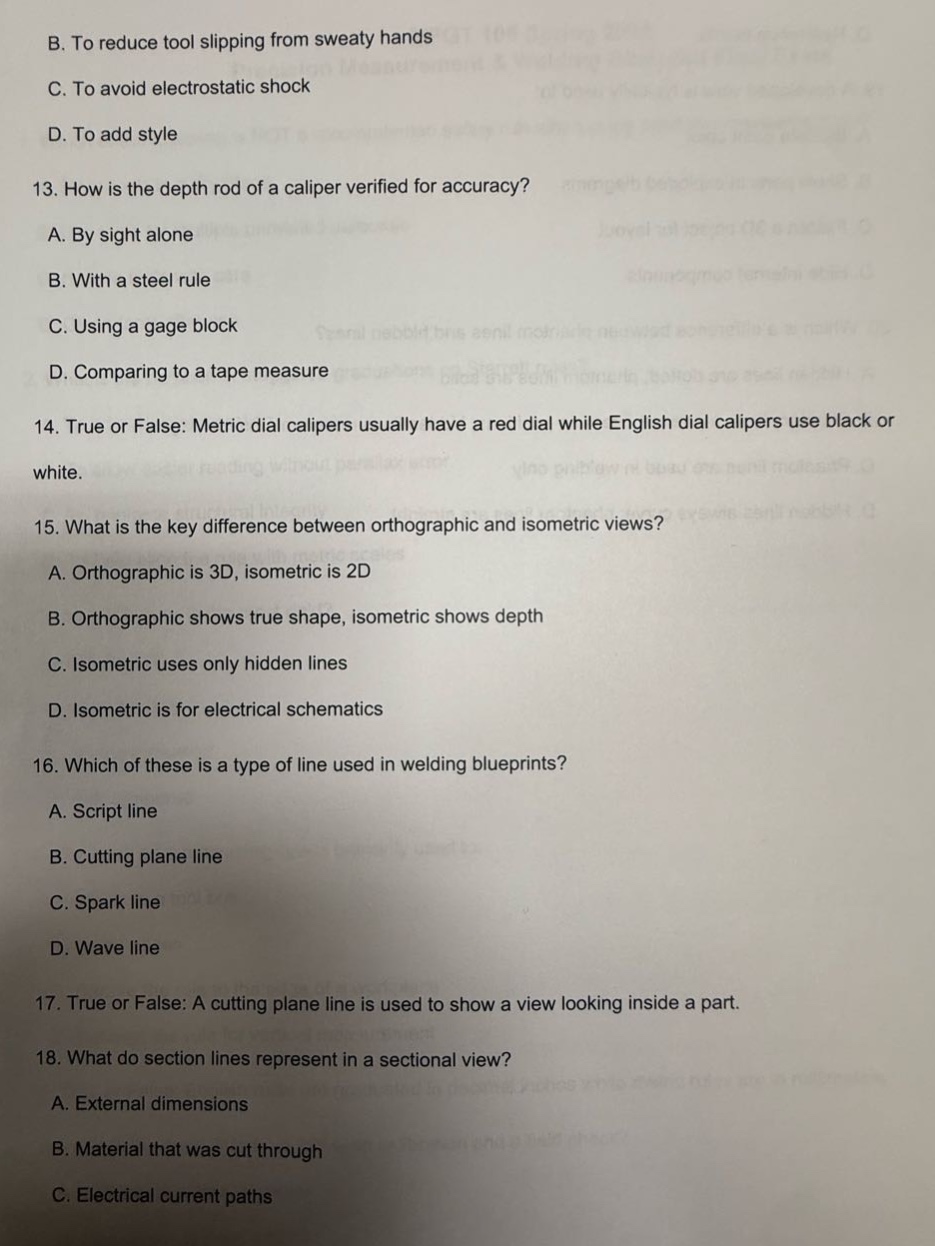

b. to reduce tool slipping from sweaty hands\nc. to avoid electrostatic shock\nd. to add style\n13. how is the depth rod of a caliper verified for accuracy?\na. by sight alone\nb. with a steel rule\nc. using a gage block\nd. comparing to a tape measure\n14. true or false: metric dial calipers usually have a red dial while english dial calipers use black or white.\n15. what is the key difference between orthographic and isometric views?\na. orthographic is 3d, isometric is 2d\nb. orthographic shows true shape, isometric shows depth\nc. isometric uses only hidden lines\nd. isometric is for electrical schematics\n16. which of these is a type of line used in welding blueprints?\na. script line\nb. cutting plane line\nc. spark line\nd. wave line\n17. true or false: a cutting plane line is used to show a view looking inside a part.\n18. what do section lines represent in a sectional view?\na. external dimensions\nb. material that was cut through\nc. electrical current paths

b. to reduce tool slipping from sweaty hands\nc. to avoid electrostatic shock\nd. to add style\n13. how is the depth rod of a caliper verified for accuracy?\na. by sight alone\nb. with a steel rule\nc. using a gage block\nd. comparing to a tape measure\n14. true or false: metric dial calipers usually have a red dial while english dial calipers use black or white.\n15. what is the key difference between orthographic and isometric views?\na. orthographic is 3d, isometric is 2d\nb. orthographic shows true shape, isometric shows depth\nc. isometric uses only hidden lines\nd. isometric is for electrical schematics\n16. which of these is a type of line used in welding blueprints?\na. script line\nb. cutting plane line\nc. spark line\nd. wave line\n17. true or false: a cutting plane line is used to show a view looking inside a part.\n18. what do section lines represent in a sectional view?\na. external dimensions\nb. material that was cut through\nc. electrical current paths

Answer

Answer:

  1. C. Using a gage block
  2. False
  3. B. Orthographic shows true shape, isometric shows depth
  4. B. Cutting plane line
  5. True
  6. B. Material that was cut through

Brief Explanations:

  1. Gage blocks are standard - used for verifying caliper depth rod accuracy.
  2. There is no such color - coding standard for metric and English dial calipers.
  3. Orthographic gives true shape in 2D, isometric shows 3D depth.
  4. Cutting plane lines are used in welding blueprints.
  5. A cutting plane line reveals an internal view of a part.
  6. Section lines in a sectional view indicate the cut - through material.
