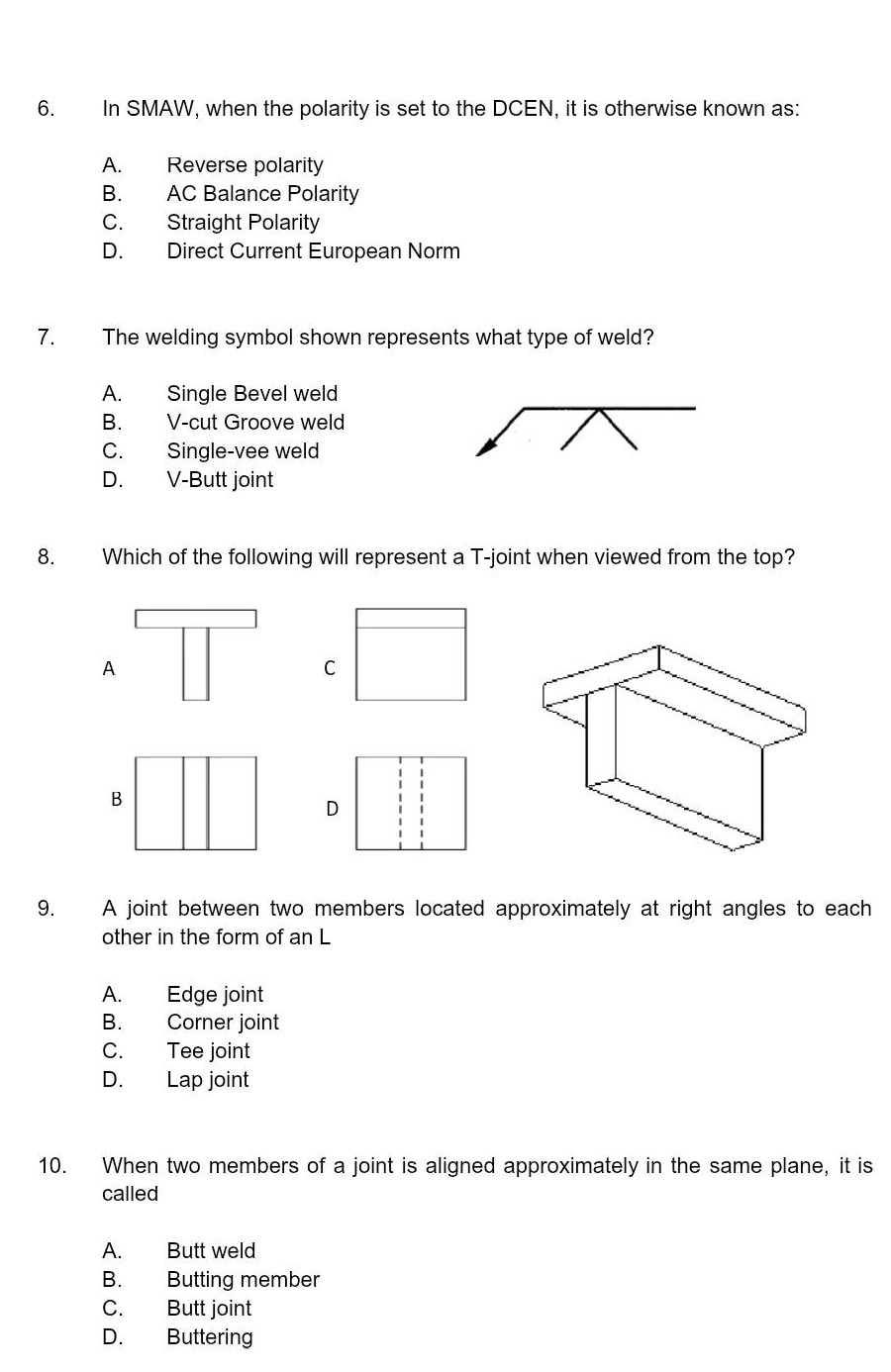

6. in smaw, when the polarity is set to the dcen, it is otherwise known as:\na. reverse polarity\nb. ac…

6. in smaw, when the polarity is set to the dcen, it is otherwise known as:\na. reverse polarity\nb. ac balance polarity\nc. straight polarity\nd. direct current european norm\n7. the welding symbol shown represents what type of weld?\na. single bevel weld\nb. v - cut groove weld\nc. single - vee weld\nd. v - butt joint\n8. which of the following will represent a t - joint when viewed from the top?\n9. a joint between two members located approximately at right angles to each other in the form of an l\na. edge joint\nb. corner joint\nc. tee joint\nd. lap joint\n10. when two members of a joint is aligned approximately in the same plane, it is called\na. butt weld\nb. butting member\nc. butt joint\nd. buttering

6. in smaw, when the polarity is set to the dcen, it is otherwise known as:\na. reverse polarity\nb. ac balance polarity\nc. straight polarity\nd. direct current european norm\n7. the welding symbol shown represents what type of weld?\na. single bevel weld\nb. v - cut groove weld\nc. single - vee weld\nd. v - butt joint\n8. which of the following will represent a t - joint when viewed from the top?\n9. a joint between two members located approximately at right angles to each other in the form of an l\na. edge joint\nb. corner joint\nc. tee joint\nd. lap joint\n10. when two members of a joint is aligned approximately in the same plane, it is called\na. butt weld\nb. butting member\nc. butt joint\nd. buttering

Answer

Brief Explanations:

  • For question 6: In SMAW (Shielded Metal - Arc Welding), DCEN (Direct Current Electrode Negative) is also known as straight polarity. Reverse polarity is DCEP (Direct Current Electrode Positive). AC Balance Polarity is related to alternating - current welding and not the same as DCEN. Direct Current European Norm is not the correct term for DCEN.
  • For question 7: The given welding symbol represents a single - vee weld. A single bevel weld has a different symbol. A V - cut Groove weld is not the standard term for this symbol. A V - Butt joint is a type of joint, not the correct term for this specific weld symbol.
  • For question 8: When viewed from the top, a T - joint is represented by the shape in option A which shows a vertical member intersecting a horizontal member in a 'T' shape.
  • For question 9: A joint between two members located approximately at right angles to each other in the form of an L is a corner joint. An edge joint is different, a tee joint has a different configuration, and a lap joint involves overlapping members.
  • For question 10: When two members of a joint are aligned approximately in the same plane, it is called a butt joint. A butt weld is the weld made in a butt joint, a butting member is not the correct term for the joint, and buttering is a different welding operation.

Answer:

  1. C. Straight Polarity
  2. C. Single - vee weld
  3. A
  4. B. Corner joint
  5. C. Butt joint
