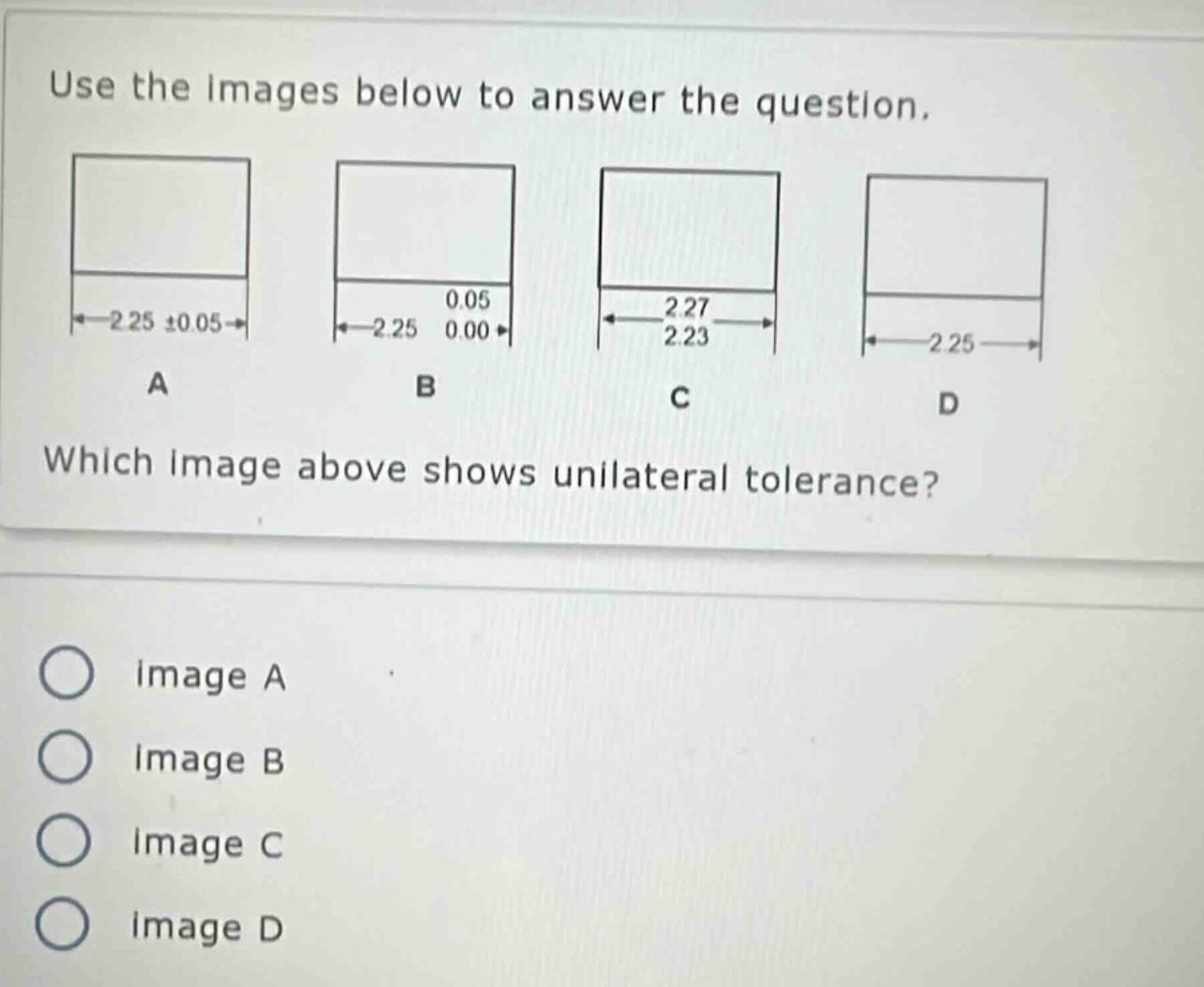

use the images below to answer the question. which image above shows unilateral tolerance? image a image b…

Brief Explanations:

Unilateral tolerance allows variation in only one direction. In Image B, the dimension is 2.25 with a tolerance of 0.05 on the positive - side and 0.00 on the negative - side, which is a characteristic of unilateral tolerance. In Image A, it is bilateral tolerance as there is a plus - minus value. In Image C, it shows two limit dimensions which is a different form of tolerance indication. In Image D, there is no tolerance shown.

Answer:

B. Image B
