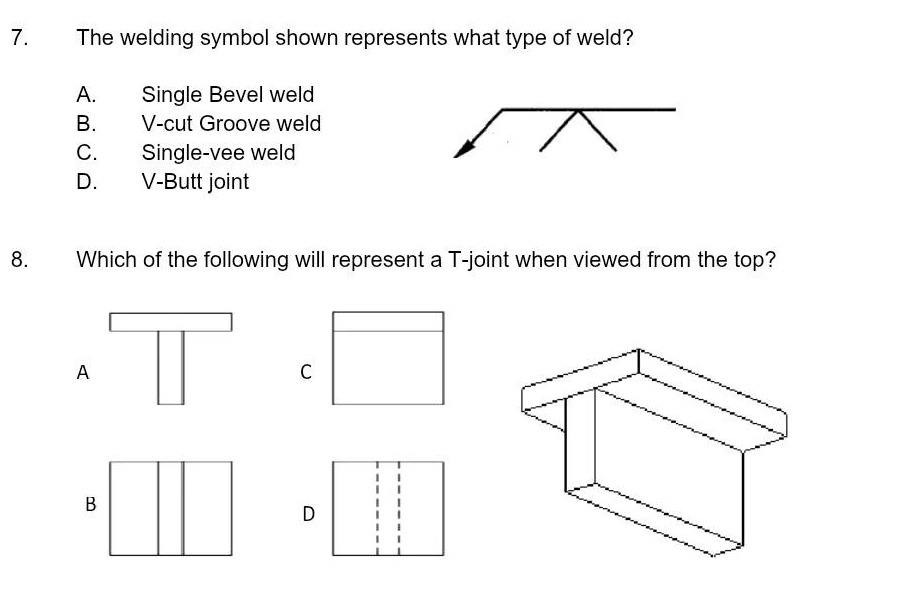

7. the welding symbol shown represents what type of weld?\na. single bevel weld\nb. v - cut groove weld\nc…

7. the welding symbol shown represents what type of weld?\na. single bevel weld\nb. v - cut groove weld\nc. single - vee weld\nd. v - butt joint\n8. which of the following will represent a t - joint when viewed from the top?

7. the welding symbol shown represents what type of weld?\na. single bevel weld\nb. v - cut groove weld\nc. single - vee weld\nd. v - butt joint\n8. which of the following will represent a t - joint when viewed from the top?

Answer

Brief Explanations:

For question 7, the given welding symbol is characteristic of a single - vee weld. A single - bevel weld has a different symbol, a V - cut groove weld is a more general term and the symbol doesn't match the one for a V - butt joint. For question 8, when viewing a T - joint from the top, it appears as a vertical line intersecting a horizontal line which is represented by option A.

Answer:

  1. C. Single-vee weld
  2. A.
