Question

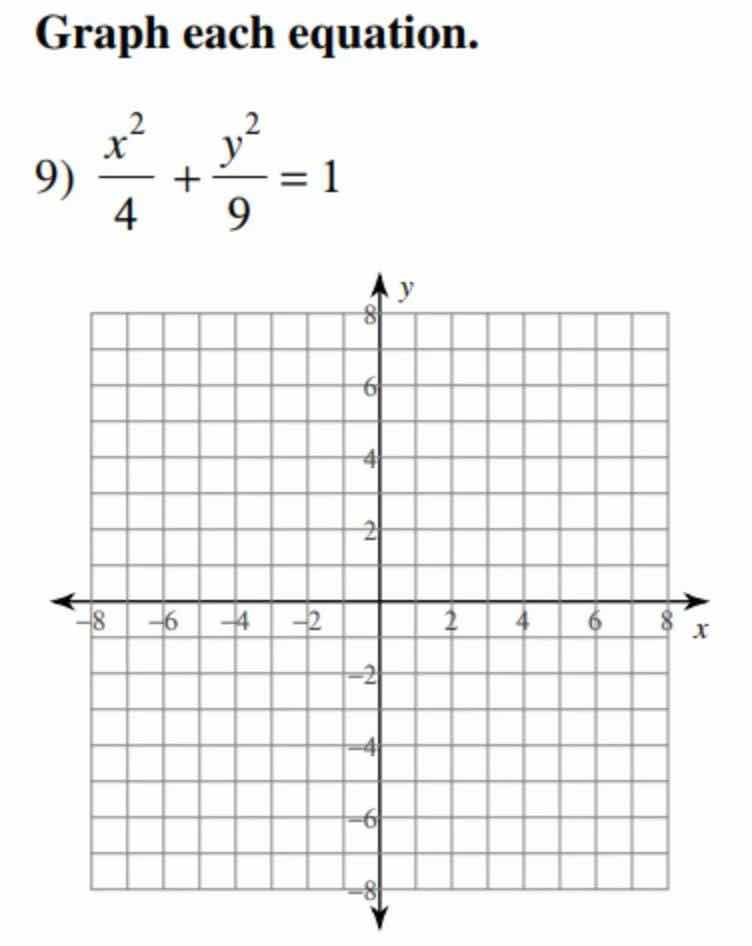

graph each equation.

1. \\(\frac{x^2}{4} + \frac{y^2}{9} = 1\\)

graph with x-axis from -8 to 8 and y-axis from -8 to 8, grid lines, origin at (0,0)

Explanation:

Step1: Identify the conic section

The equation \(\frac{x^{2}}{4}+\frac{y^{2}}{9} = 1\) is in the standard form of an ellipse \(\frac{x^{2}}{b^{2}}+\frac{y^{2}}{a^{2}}=1\) (since \(a^{2}=9\) and \(b^{2} = 4\), so \(a = 3\), \(b=2\)) with a vertical major axis (because \(a>b\) and the \(y\)-term has the larger denominator).

Step2: Find the vertices and co - vertices

• For the \(y\)-axis (major axis): The vertices are at \((0,\pm a)=(0,\pm3)\).
• For the \(x\)-axis (minor axis): The co - vertices are at \((\pm b,0)=(\pm2,0)\).

Step3: Plot the points

• Plot the vertices \((0, 3)\), \((0,- 3)\) and the co - vertices \((2,0)\), \((-2,0)\).
• Then, sketch the ellipse by connecting these points smoothly, making sure that the ellipse is symmetric about both the \(x\)-axis and \(y\)-axis.

To graph the ellipse \(\frac{x^{2}}{4}+\frac{y^{2}}{9}=1\):

1. Recognize it is an ellipse with vertical major axis (\(a = 3\), \(b = 2\)).
2. Plot vertices \((0,3)\), \((0, - 3)\) and co - vertices \((2,0)\), \((-2,0)\).
3. Draw a smooth curve through these points, symmetric about \(x\) and \(y\) axes.

(Note: Since the question asks to graph the equation, the final answer is the graph of the ellipse with vertices \((0,\pm3)\) and co - vertices \((\pm2,0)\) as described above.)

Answer:

Step1: Identify the conic section

The equation \(\frac{x^{2}}{4}+\frac{y^{2}}{9} = 1\) is in the standard form of an ellipse \(\frac{x^{2}}{b^{2}}+\frac{y^{2}}{a^{2}}=1\) (since \(a^{2}=9\) and \(b^{2} = 4\), so \(a = 3\), \(b=2\)) with a vertical major axis (because \(a>b\) and the \(y\)-term has the larger denominator).

Step2: Find the vertices and co - vertices

• For the \(y\)-axis (major axis): The vertices are at \((0,\pm a)=(0,\pm3)\).
• For the \(x\)-axis (minor axis): The co - vertices are at \((\pm b,0)=(\pm2,0)\).

Step3: Plot the points

• Plot the vertices \((0, 3)\), \((0,- 3)\) and the co - vertices \((2,0)\), \((-2,0)\).
• Then, sketch the ellipse by connecting these points smoothly, making sure that the ellipse is symmetric about both the \(x\)-axis and \(y\)-axis.

To graph the ellipse \(\frac{x^{2}}{4}+\frac{y^{2}}{9}=1\):

1. Recognize it is an ellipse with vertical major axis (\(a = 3\), \(b = 2\)).
2. Plot vertices \((0,3)\), \((0, - 3)\) and co - vertices \((2,0)\), \((-2,0)\).
3. Draw a smooth curve through these points, symmetric about \(x\) and \(y\) axes.

(Note: Since the question asks to graph the equation, the final answer is the graph of the ellipse with vertices \((0,\pm3)\) and co - vertices \((\pm2,0)\) as described above.)
