Question

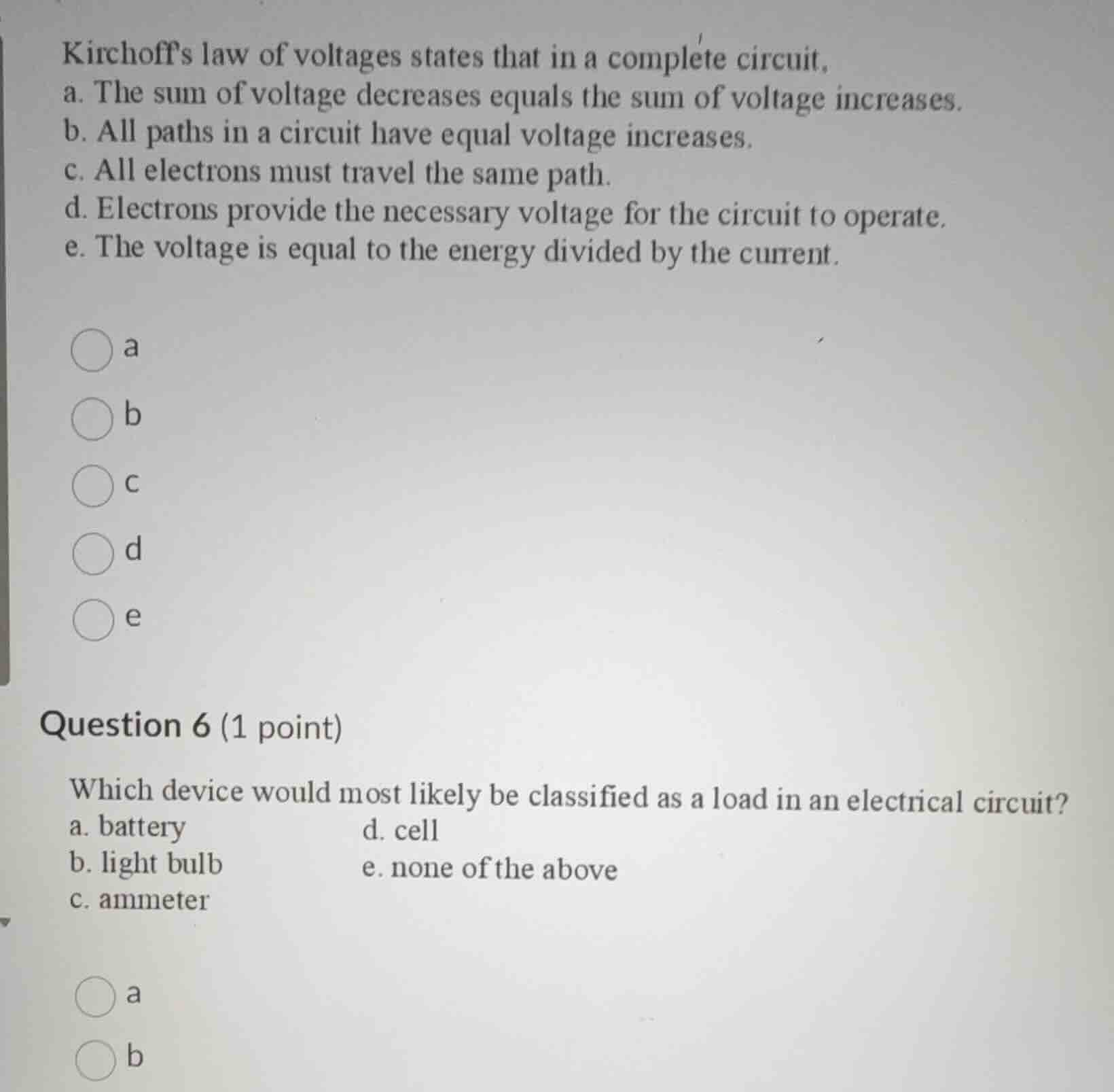

kirchoffs law of voltages states that in a complete circuit,
a. the sum of voltage decreases equals the sum of voltage increases.
b. all paths in a circuit have equal voltage increases.
c. all electrons must travel the same path.
d. electrons provide the necessary voltage for the circuit to operate.
e. the voltage is equal to the energy divided by the current.
question 6 (1 point)
which device would most likely be classified as a load in an electrical circuit?
a. battery
d. cell
b. light bulb
e. none of the above
c. ammeter

Explanation:

First Question (Kirchoff's Law of Voltages)

• Option a: Kirchhoff's Voltage Law (KVL) states that the algebraic sum of all voltages around a closed loop is zero, meaning the sum of voltage decreases (drops) equals the sum of voltage increases (rises) in a complete circuit.
• Option b: Paths in a circuit (e.g., parallel branches) can have different voltage - related characteristics; KVL is about a single loop, not all paths having equal voltage increases.
• Option c: Electrons can travel different paths in a parallel circuit, so this is incorrect.
• Option d: A voltage source (like a battery) provides voltage, not electrons.
• Option e: Voltage is energy per unit charge ($V=\frac{W}{Q}$), not energy divided by current (current is $I = \frac{Q}{t}$), so this is incorrect.

• A load in a circuit is a device that consumes electrical energy.
• Option a: A battery is a voltage source, not a load.
• Option b: A light bulb consumes electrical energy (converts it to light and heat), so it is a load.
• Option c: An ammeter is a measuring device (measures current) and is not a load (it has very low resistance, so it doesn't consume significant energy as a load would).
• Option d: A cell is also a voltage source.
• Option e: Since option b is correct, "none of the above" is incorrect.

Answer:

a. The sum of voltage decreases equals the sum of voltage increases.

Second Question (Load in an Electrical Circuit)
