Question

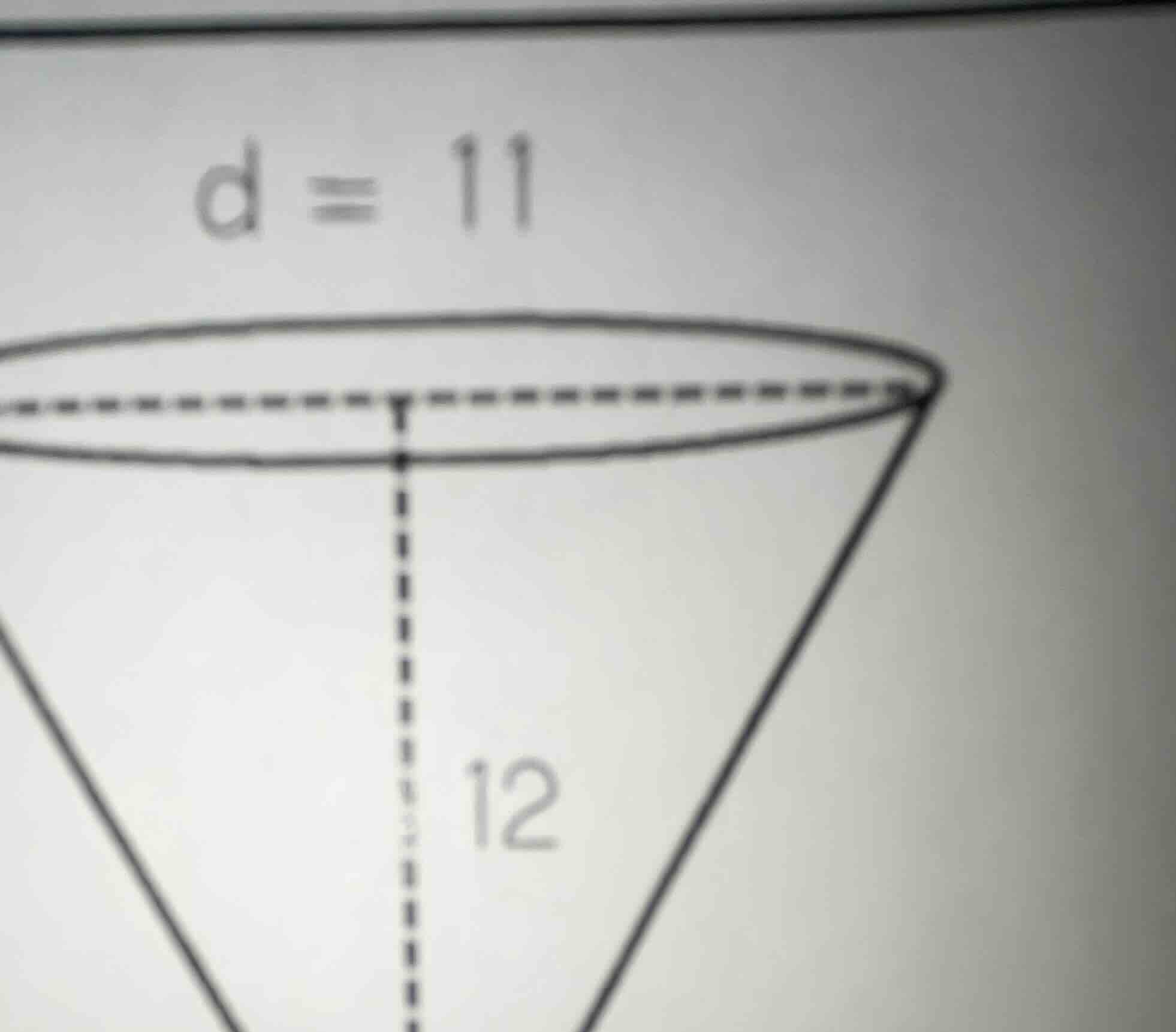

d = 11, 12 (related to a cone diagram)

Explanation:

Assuming we need to find the volume of the cone. The formula for the volume of a cone is \( V=\frac{1}{3}\pi r^{2}h \).

Step1: Find the radius \( r \)

Given the diameter \( d = 11 \), the radius \( r=\frac{d}{2}=\frac{11}{2} = 5.5 \)

Step2: Identify the height \( h \)

From the diagram, the height \( h = 12 \)

Step3: Calculate the volume

Substitute \( r = 5.5 \) and \( h=12 \) into the volume formula:
\( V=\frac{1}{3}\pi(5.5)^{2}(12) \)
First, calculate \( (5.5)^{2}=30.25 \)
Then, \( \frac{1}{3}\times12 = 4 \)
So, \( V = 4\times\pi\times30.25=121\pi\approx 121\times 3.14 = 380.13 \)

Answer:

If we take \( \pi\approx3.14 \), the volume is approximately \( 380.13 \) (or \( 121\pi \) in exact form)
