Question

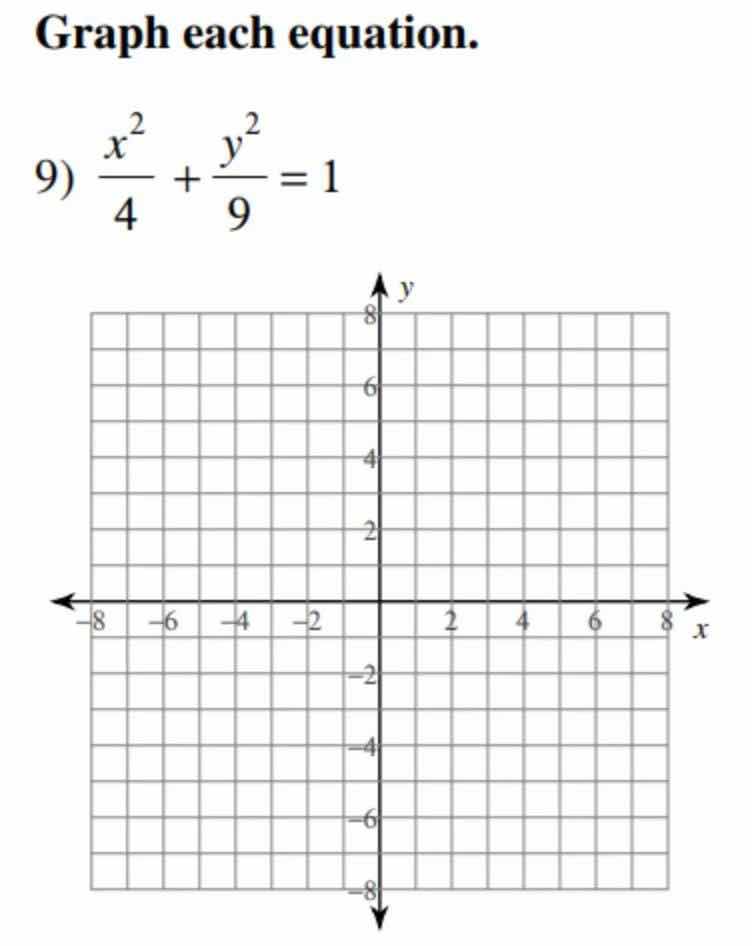

graph each equation. 9) \\(\frac{x^2}{4} + \frac{y^2}{9} = 1\\) graph with x from -8 to 8 and y from -8 to 8, grid lines

Explanation:

Step1: Identify the conic section

The equation \(\frac{x^{2}}{4}+\frac{y^{2}}{9} = 1\) is in the standard form of an ellipse \(\frac{x^{2}}{b^{2}}+\frac{y^{2}}{a^{2}}=1\) (since \(a^{2}=9\) and \(b^{2}=4\), and \(a > b\), so it is a vertical ellipse centered at the origin \((0,0)\)).

Step2: Find the vertices and co - vertices

For a vertical ellipse \(\frac{x^{2}}{b^{2}}+\frac{y^{2}}{a^{2}} = 1\):

• The vertices are at \((0,\pm a)\). Since \(a^{2}=9\), then \(a = 3\), so the vertices are \((0,3)\) and \((0, - 3)\).
• The co - vertices are at \((\pm b,0)\). Since \(b^{2}=4\), then \(b = 2\), so the co - vertices are \((2,0)\) and \((- 2,0)\).

Step3: Plot the points and draw the ellipse

Plot the center \((0,0)\), the vertices \((0,3)\), \((0, - 3)\) and the co - vertices \((2,0)\), \((-2,0)\). Then, sketch the ellipse passing through these points. The major axis is along the \(y\) - axis with length \(2a=6\) and the minor axis is along the \(x\) - axis with length \(2b = 4\).

Answer:

To graph \(\frac{x^{2}}{4}+\frac{y^{2}}{9}=1\):

1. Recognize it is a vertical ellipse centered at \((0,0)\) with \(a = 3\) (semi - major axis) and \(b=2\) (semi - minor axis).
2. Plot the vertices \((0,3)\), \((0, - 3)\) and co - vertices \((2,0)\), \((-2,0)\).
3. Draw an ellipse passing through these points, with the major axis along the \(y\) - axis and minor axis along the \(x\) - axis.
