Question

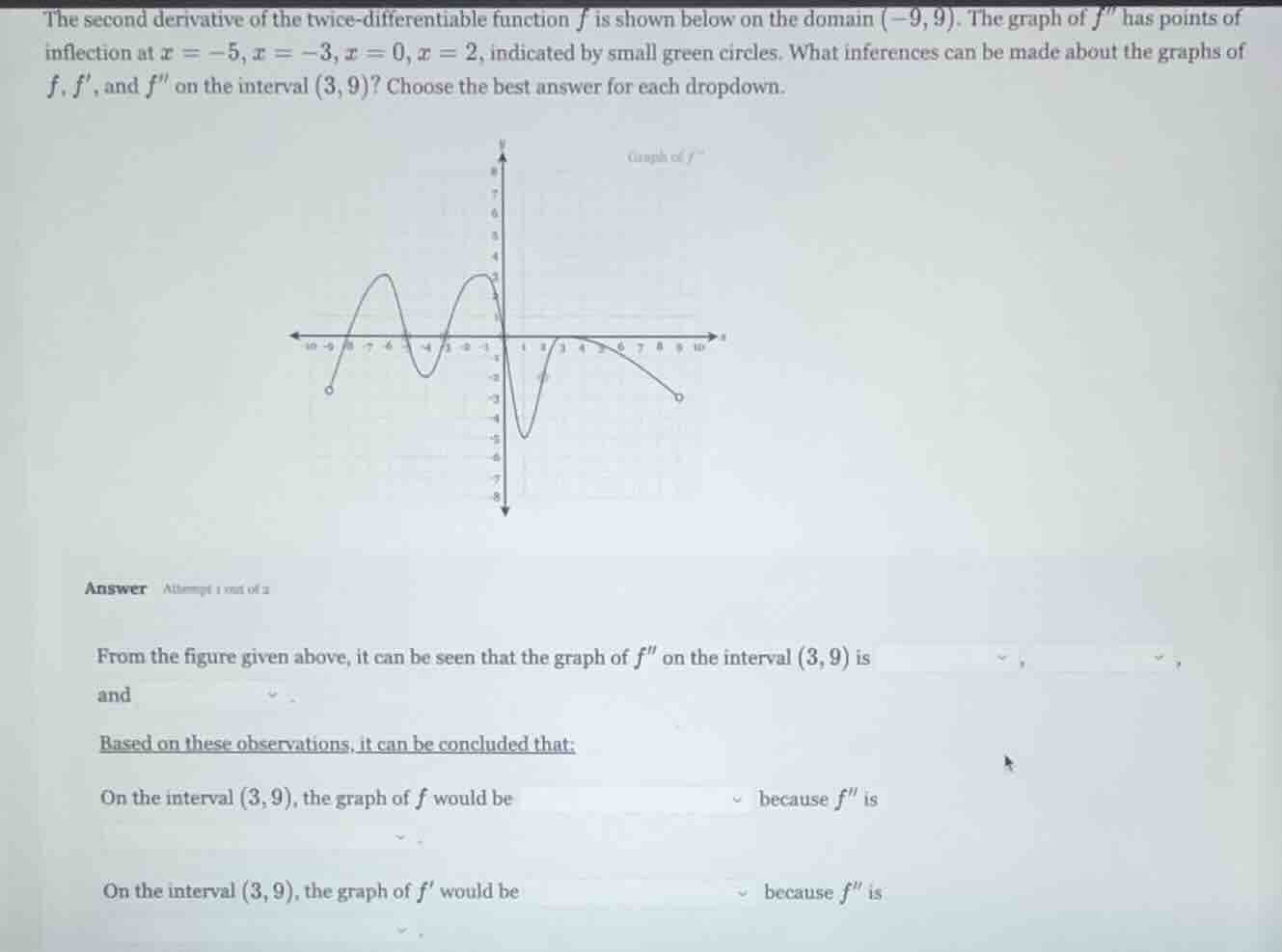

the second derivative of the twice - differentiable function ( f ) is shown below on the domain ( (-9,9) ). the graph of ( f ) has points of inflection at ( x = - 5,x=-3,x = 0,x = 2 ), indicated by small green circles. what inferences can be made about the graphs of ( f,f ), and ( f ) on the interval ( (3,9) )? choose the best answer for each dropdown.

answer attempt 1 out of 2

from the figure given above, it can be seen that the graph of ( f ) on the interval ( (3,9) ) is (quad), (quad), and (quad).

based on these observations, it can be concluded that:

on the interval ( (3,9) ), the graph of ( f ) would be (quad) because ( f ) is (quad).

on the interval ( (3,9) ), the graph of ( f ) would be (quad) because ( f ) is (quad).

Explanation:

Step1: Analyze $f''$ on $(3,9)$

From the graph, on $(3,9)$:

• $f''(x) < 0$ (lies below x-axis)
• $f''(x)$ is decreasing (slopes downward left to right)
• $f''(x)$ approaches a finite negative value (no asymptote)

Step2: Relate $f''$ to $f$

Concavity of $f$ depends on $f''$:
If $f''(x) < 0$, $f$ is concave down.

Step3: Relate $f''$ to $f'$

Monotonicity of $f'$ depends on $f''$:
If $f''(x) < 0$ and decreasing, $f'$ is decreasing (since $f''$ is derivative of $f'$) and its slope is becoming more negative (so $f'$ is concave down).

Answer:

From the figure given above, it can be seen that the graph of $f''$ on the interval $(3,9)$ is negative, decreasing, and approaching a finite negative value.

Based on these observations, it can be concluded that:
On the interval $(3,9)$, the graph of $f$ would be concave downward because $f''$ is negative on the interval.
On the interval $(3,9)$, the graph of $f'$ would be decreasing and concave downward because $f''$ is negative and decreasing on the interval.
