at which point would the circuit need to be severed to prevent all ligh…

Question

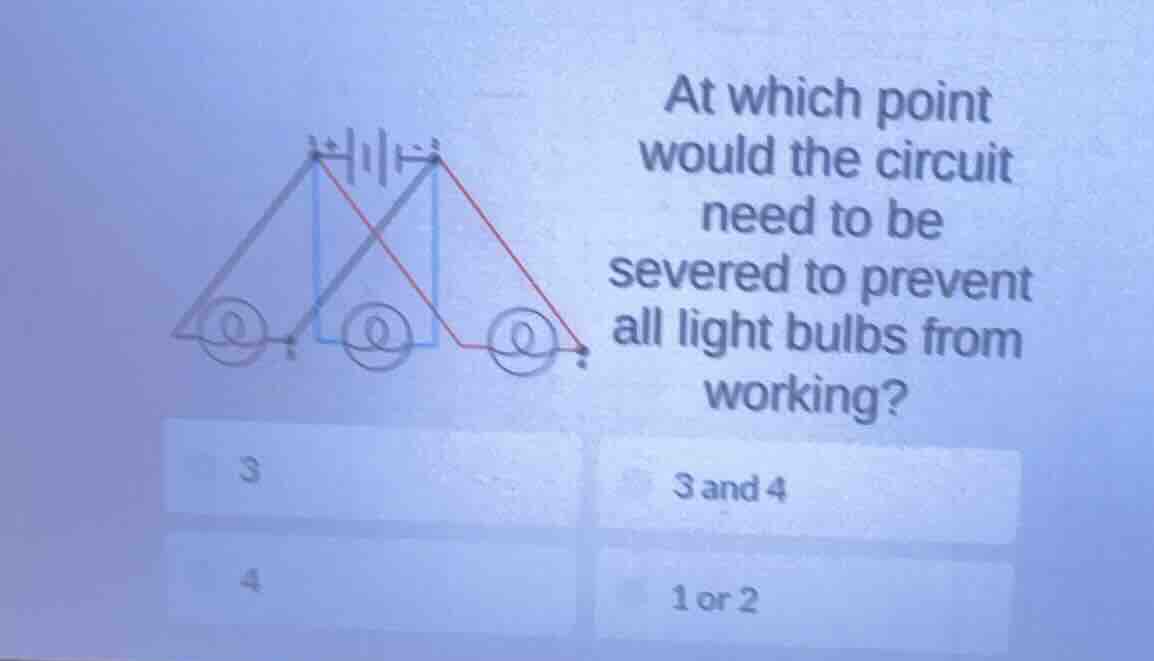

at which point would the circuit need to be severed to prevent all light bulbs from working?
3
3 and 4
4
1 or 2

Explanation:

Brief Explanations

The circuit has three bulbs in parallel, connected to the battery via points 1/2 (positive side) and the lower connections (negative side). To stop all bulbs, we must break the shared path that supplies all branches. Points 1 and 2 are part of the main positive supply line common to all parallel branches. Severing either 1 or 2 cuts off power to every bulb's branch. Severing 3 or 4 only stops individual bulbs, not all.

Answer:

1 or 2
