Question

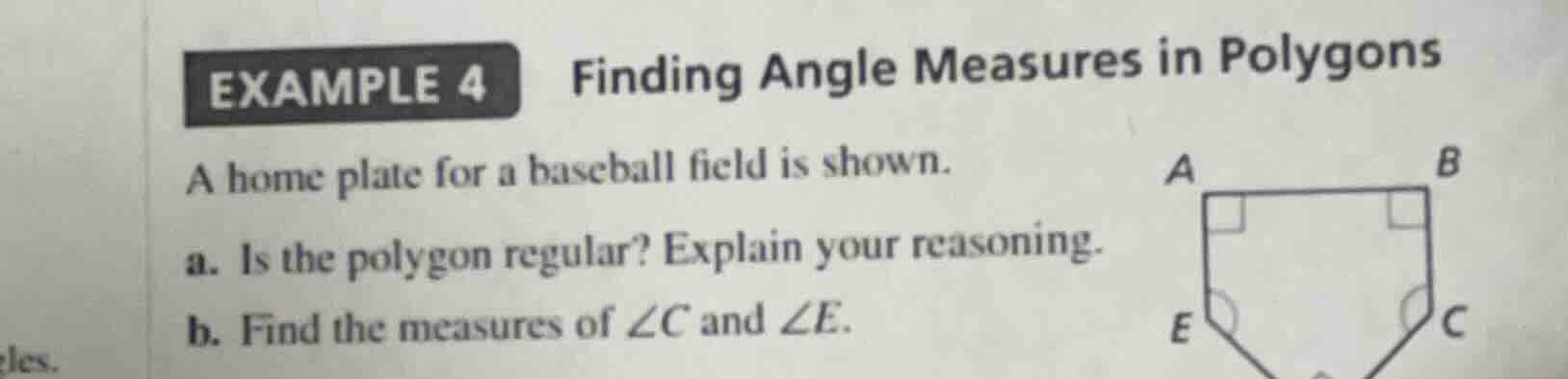

example 4 finding angle measures in polygons a home plate for a baseball field is shown. a. is the polygon regular? explain your reasoning. b. find the measures of ∠c and ∠e. (with an image of a pentagon labeled a, b, c, e with right angles at a and b)

Explanation:

Part (a)

A regular polygon has all sides equal and all interior angles equal. The home - plate polygon (a pentagon) has two right angles (at \(A\) and \(B\)) and the other three angles (including \(\angle C\), \(\angle E\) and the bottom - most angle) are not right angles. Also, visually, the sides adjacent to the right angles and the other sides do not appear to be of equal length. So, since not all angles are equal and not all sides are equal, the polygon is not regular.

Step 1: Recall the formula for the sum of interior angles of a polygon

The formula for the sum of the interior angles of a polygon with \(n\) sides is \(S=(n - 2)\times180^{\circ}\). For a pentagon, \(n = 5\), so \(S=(5 - 2)\times180^{\circ}=3\times180^{\circ}=540^{\circ}\).

Step 2: Identify the known angles

We know that \(\angle A = 90^{\circ}\) and \(\angle B=90^{\circ}\), and let the bottom - most angle (let's call it \(\angle D\)) be \(90^{\circ}\) (from the shape of a baseball home - plate, the bottom angle is a right angle). Let \(\angle C=\angle E = x\) (since the home - plate is symmetric, \(\angle C\) and \(\angle E\) are equal).

Step 3: Set up an equation to solve for \(x\)

The sum of the interior angles is \(\angle A+\angle B+\angle C+\angle D+\angle E=540^{\circ}\). Substituting the known values: \(90^{\circ}+90^{\circ}+x + 90^{\circ}+x=540^{\circ}\).
Simplify the left - hand side: \(270^{\circ}+2x=540^{\circ}\).

Step 4: Solve for \(x\)

Subtract \(270^{\circ}\) from both sides: \(2x=540^{\circ}-270^{\circ}=270^{\circ}\).
Divide both sides by 2: \(x = 135^{\circ}\).

Answer:

The polygon is not regular. A regular polygon requires all sides to be congruent and all interior angles to be congruent. The home - plate pentagon has two right angles (\(\angle A\) and \(\angle B\)) and the other angles are not right angles, and the side lengths are not all equal.

Part (b)
