Question

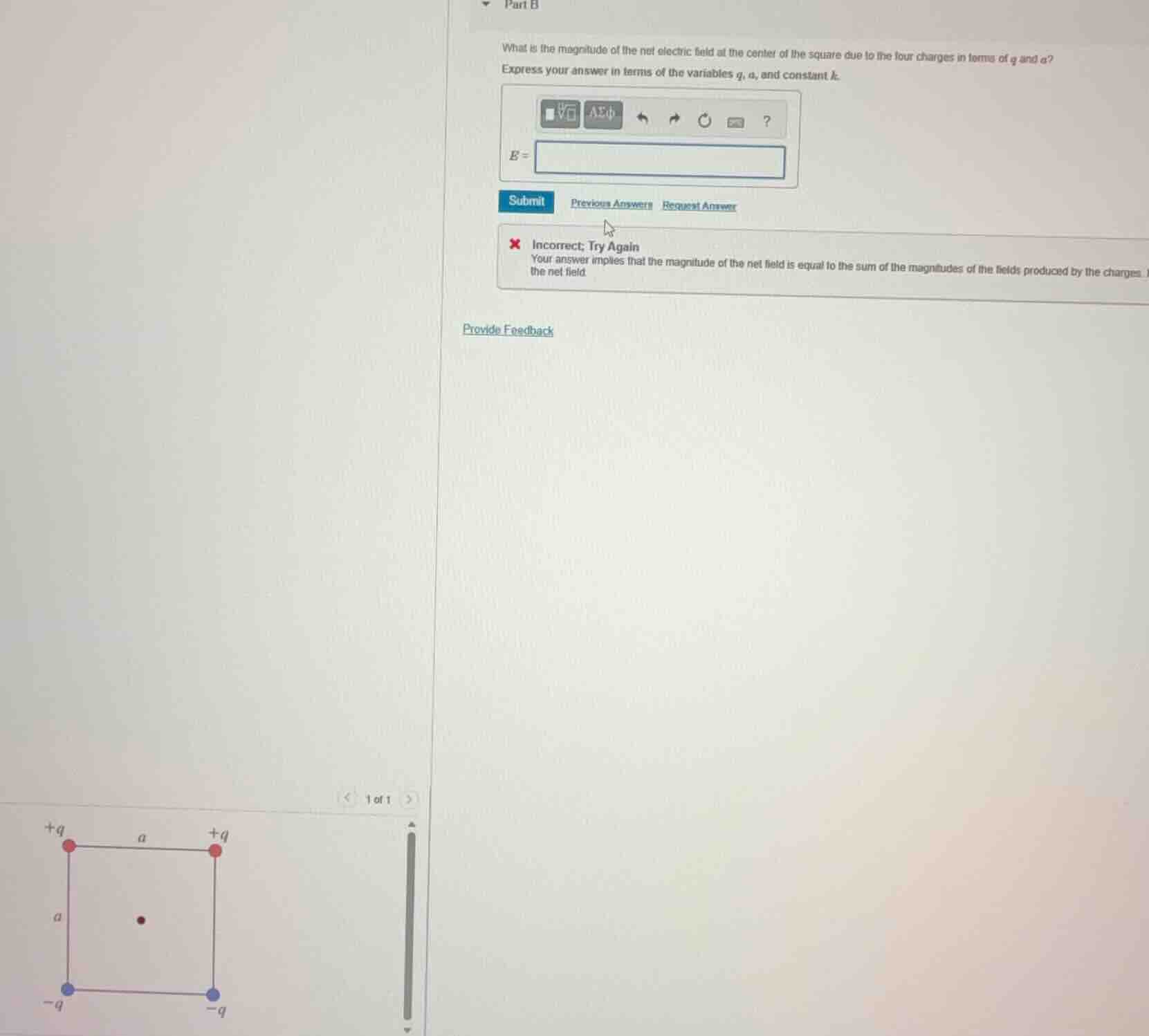

part b
what is the magnitude of the net electric field at the center of the square due to the four charges in terms of q and a?
express your answer in terms of the variables q, a, and constant k.
e =
submit previous answers request answer
incorrect; try again
your answer implies that the magnitude of the net field is equal to the sum of the magnitudes of the fields produced by the charges the net field
provide feedback
+q a +q
a
−q −q

Explanation:

Step1: Find distance to center

The distance from each charge to the square's center is $r = \frac{a}{\sqrt{2}}$, so $r^2 = \frac{a^2}{2}$.

Step2: Field magnitude per charge

Electric field magnitude from one charge: $E_{single} = k\frac{q}{r^2} = k\frac{q}{\frac{a^2}{2}} = \frac{2kq}{a^2}$

Step3: Pair field vectors (top +q)

Top two +q charges: their fields at center point away from each charge, so they are perpendicular. Resultant magnitude: $E_{top} = \sqrt{E_{single}^2 + E_{single}^2} = E_{single}\sqrt{2} = \frac{2\sqrt{2}kq}{a^2}$, directed downward.

Step4: Pair field vectors (bottom -q)

Bottom two -q charges: their fields at center point toward each charge, so they are perpendicular. Resultant magnitude: $E_{bottom} = \sqrt{E_{single}^2 + E_{single}^2} = \frac{2\sqrt{2}kq}{a^2}$, directed downward.

Step5: Sum total field

Add the two collinear resultants: $E_{net} = E_{top} + E_{bottom}$
<Expression>
$E_{net} = \frac{2\sqrt{2}kq}{a^2} + \frac{2\sqrt{2}kq}{a^2} = \frac{4\sqrt{2}kq}{a^2}$
</Expression>

Answer:

$\frac{4\sqrt{2}kq}{a^2}$
