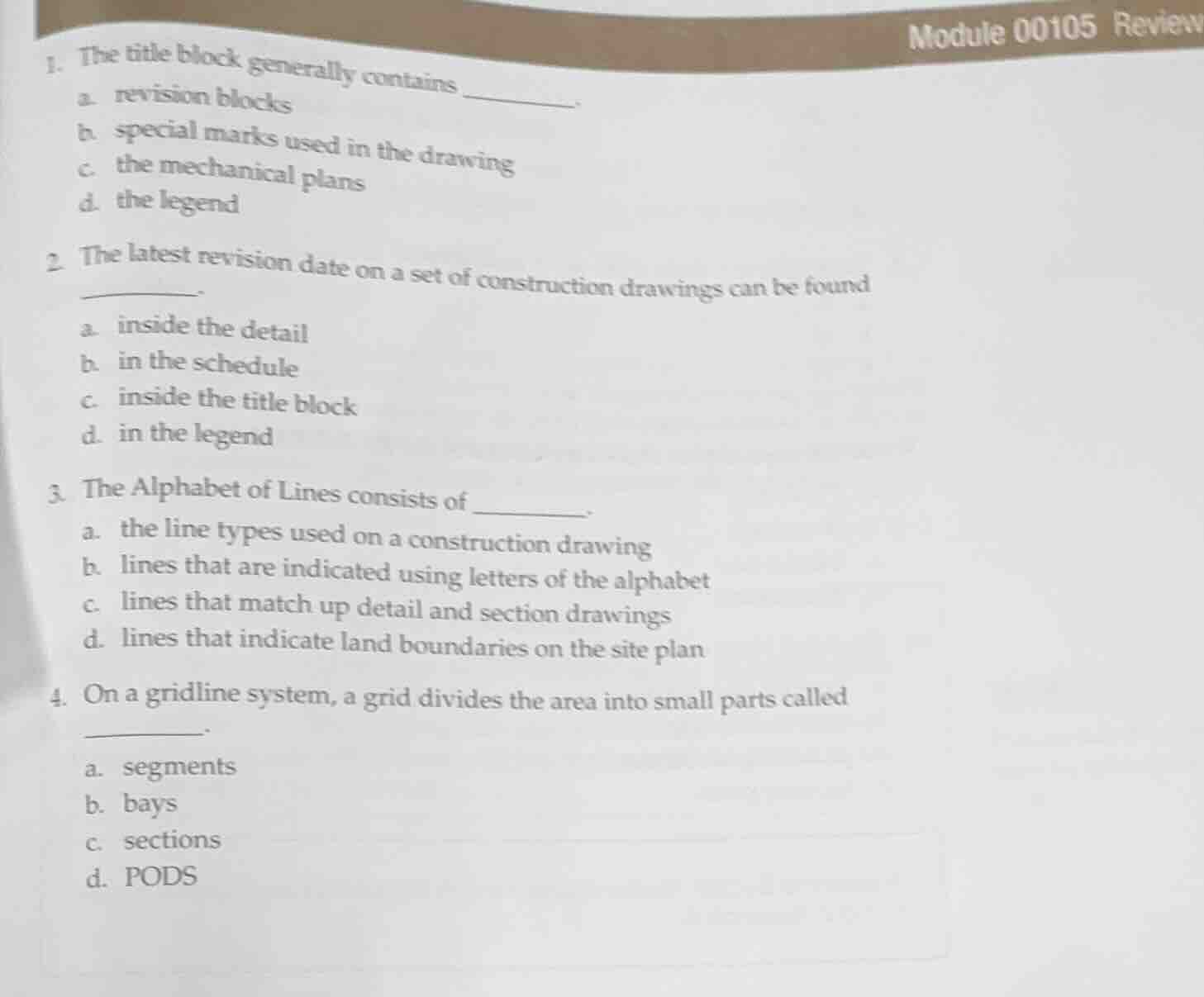

1. the title block generally contains ______.

a. revision blocks
b. special marks used in the drawing
c. the mechanical plans
d. the legend

1. the latest revision date on a set of construction drawings can be found ______.

a. inside the detail
b. in the schedule
c. inside the title block
d. in the legend

1. the alphabet of lines consists of ______.

a. the line types used on a construction drawing
b. lines that are indicated using letters of the alphabet
c. lines that match up detail and section drawings
d. lines that indicate land boundaries on the site plan

1. on a gridline system, a grid divides the area into small parts called ______.

a. segments
b. bays
c. sections
d. pods

Explanation:

1. Title blocks on construction drawings include revision blocks to track document updates.
2. Revision dates, including the latest, are standardized to be placed within the title block of construction drawings.
3. The "Alphabet of Lines" is the standard set of line types used to convey specific information on construction drawings.
4. In a gridline system for construction, the divided small areas are referred to as bays.

Answer:

1. a. revision blocks
2. c. inside the title block
3. a. the line types used on a construction drawing
4. b. bays
