Question

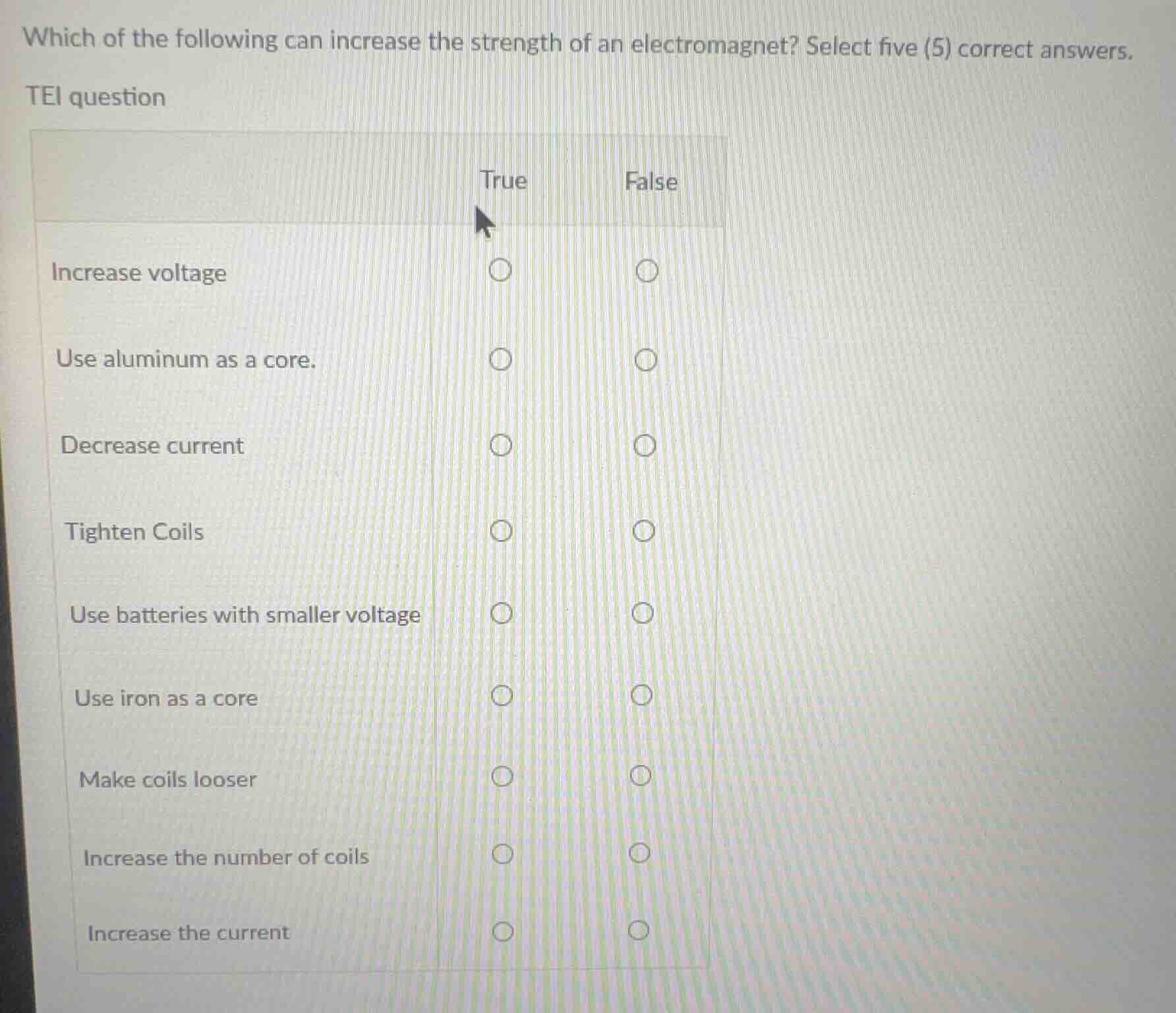

which of the following can increase the strength of an electromagnet? select five (5) correct answers. tei question true false increase voltage ○ ○ use aluminum as a core. ○ ○ decrease current ○ ○ tighten coils ○ ○ use batteries with smaller voltage ○ ○ use iron as a core ○ ○ make coils looser ○ ○ increase the number of coils ○ ○ increase the current ○ ○

Explanation:

1. Increase voltage: Higher voltage increases current (by \( I=\frac{V}{R} \) if resistance is constant), and electromagnet strength is proportional to current. So this increases strength (True).
2. Use aluminum as a core: Aluminum is not a ferromagnetic material (unlike iron), so it won’t enhance the magnetic field. This does not increase strength (False).
3. Decrease current: Electromagnet strength is proportional to current; decreasing current weakens it (False).
4. Tighten Coils: Tightening coils increases the number of turns per unit length, which increases the magnetic field (True).
5. Use batteries with smaller voltage: Smaller voltage decreases current (by \( I=\frac{V}{R} \)), weakening the electromagnet (False).
6. Use iron as a core: Iron is ferromagnetic and concentrates the magnetic field, increasing strength (True).
7. Make coils looser: Looser coils decrease the number of turns per unit length, reducing the magnetic field (False).
8. Increase the number of coils: More coils (turns) increase the magnetic field (True).
9. Increase the current: Electromagnet strength is proportional to current; increasing current increases strength (True).

The five correct options (marked True) are:

• Increase voltage
• Tighten Coils
• Use iron as a core
• Increase the number of coils
• Increase the current

Answer:

• Increase voltage: True
• Use aluminum as a core: False
• Decrease current: False
• Tighten Coils: True
• Use batteries with smaller voltage: False
• Use iron as a core: True
• Make coils looser: False
• Increase the number of coils: True
• Increase the current: True

(The five correct ones to select as "True" are: Increase voltage, Tighten Coils, Use iron as a core, Increase the number of coils, Increase the current)
