Question

if defg is a rhombus, find ( mangle dgf ).
the measure of angle dgf is

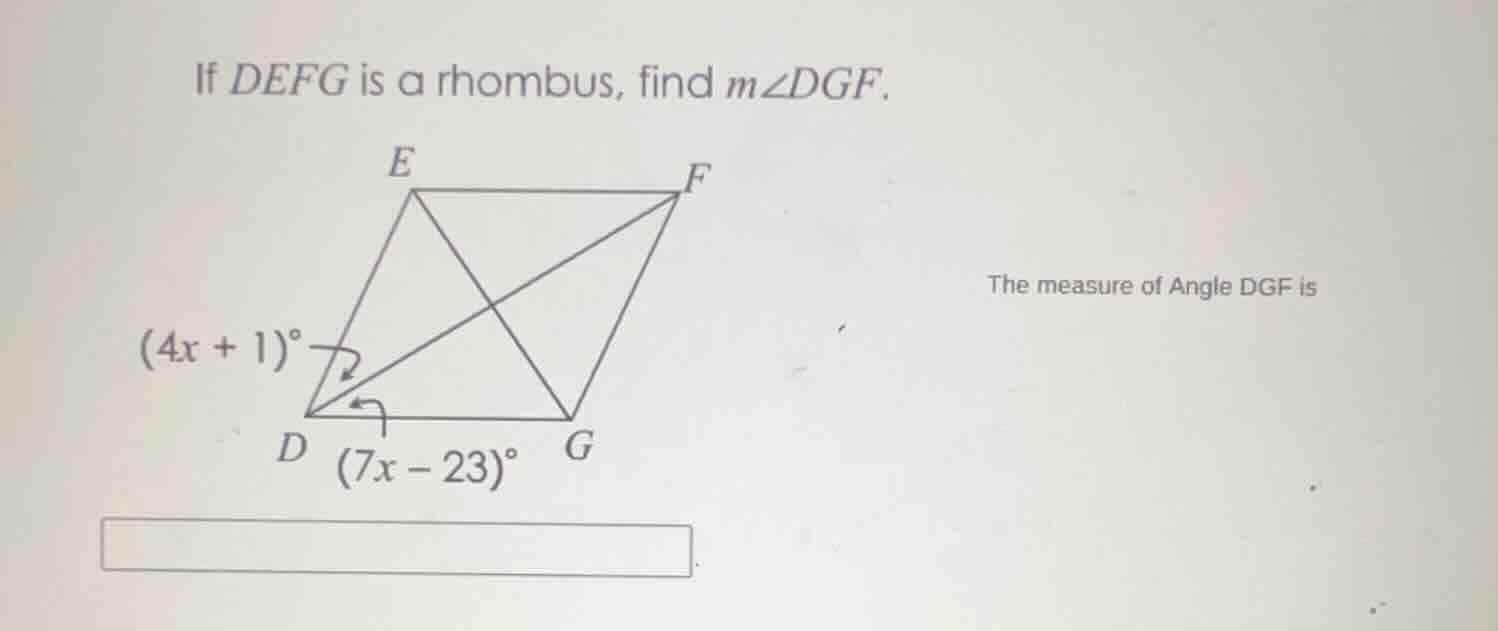

(there is a rhombus defg in the image, with diagonals intersecting. at vertex d, there are two angles: one is ( (4x + 1)^circ ) and the other is ( (7x - 23)^circ ))

Explanation:

Step1: Recall rhombus diagonal property

In a rhombus, the diagonal bisects the angles. So, \(4x + 1 = 7x - 23\).

Step2: Solve for x

Subtract \(4x\) from both sides: \(1 = 3x - 23\).
Add 23 to both sides: \(24 = 3x\).
Divide by 3: \(x = 8\).

Step3: Find angle at D

Substitute \(x = 8\) into \(7x - 23\): \(7(8) - 23 = 56 - 23 = 33^\circ\).
The other angle at D is \(4x + 1 = 4(8) + 1 = 33^\circ\), so \(\angle EDG=\angle GDF = 33^\circ\), so \(\angle EDG+\angle GDF = 66^\circ\).
In rhombus, adjacent angles are supplementary. Let \(\angle DGF\) be \(y\), then \(y + 66^\circ= 180^\circ\).
Solve for \(y\): \(y = 180 - 66 = 114^\circ\).

Answer:

\(114^\circ\)
