Question

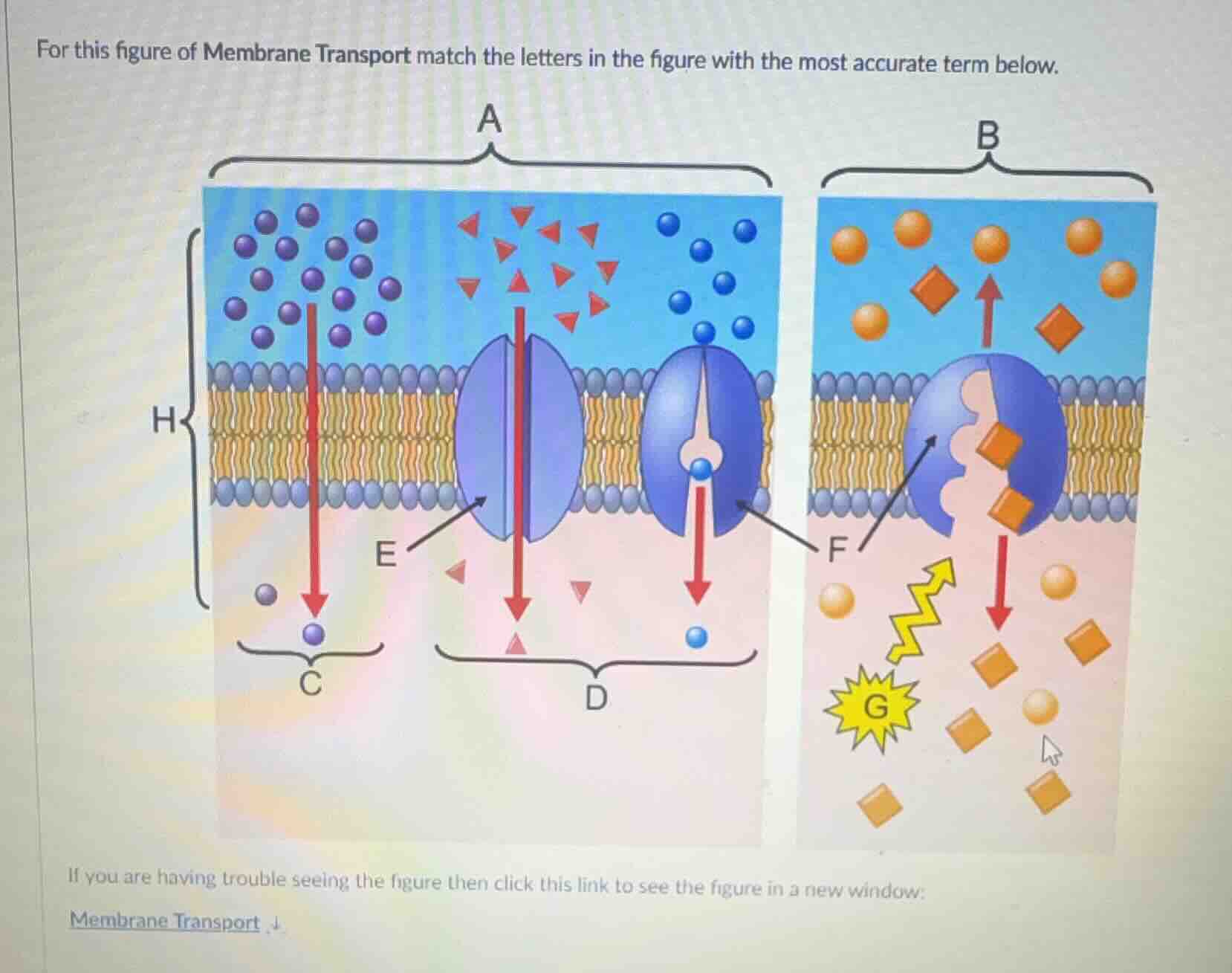

for this figure of membrane transport match the letters in the figure with the most accurate term below.
if you are having trouble seeing the figure then click this link to see the figure in a new window:
membrane transport

Explanation:

Since the problem is about membrane transport in cells, which is a topic in Biology (a subfield of Natural Science), and assuming we need to match the letters (though the terms to match aren't provided, we can explain the typical components):

• A: Likely represents passive transport (diffusion, facilitated diffusion) as molecules move down concentration gradients (purple, red, blue molecules move from high to low).
• B: Likely active transport (requires energy, shown by the yellow energy symbol) as orange/diamond molecules move against concentration gradients.
• C: Simple diffusion (purple molecules move through the lipid bilayer without a protein).
• D: Facilitated diffusion (red triangles move through a channel protein, E, down gradient).
• E: Channel protein (allows specific molecules through).
• F: Carrier protein (facilitates blue molecules' movement down gradient in A, or in B, maybe for active transport).
• G: Energy source (like ATP) for active transport in B.
• H: Plasma membrane (phospholipid bilayer).

To match, we analyze each letter:

• A: Passive Transport (includes simple/facilitated diffusion, no energy)
• B: Active Transport (needs energy, moves against gradient)
• C: Simple Diffusion (molecule moves through lipid bilayer)
• D: Facilitated Diffusion (molecule moves through channel/carrier down gradient)
• E: Channel Protein (integral membrane protein forming a pore)
• F: Carrier Protein (binds and transports molecule, can be passive/active)
• G: Energy (e.g., ATP) for active transport
• H: Plasma Membrane (phospholipid bilayer structure)

Answer:

• A: Passive Transport
• B: Active Transport
• C: Simple Diffusion
• D: Facilitated Diffusion
• E: Channel Protein
• F: Carrier Protein
• G: Energy (e.g., ATP)
• H: Plasma Membrane

(Note: If specific terms were provided, we'd match each letter to the correct term. The above is based on typical membrane transport figure components.)
