Question

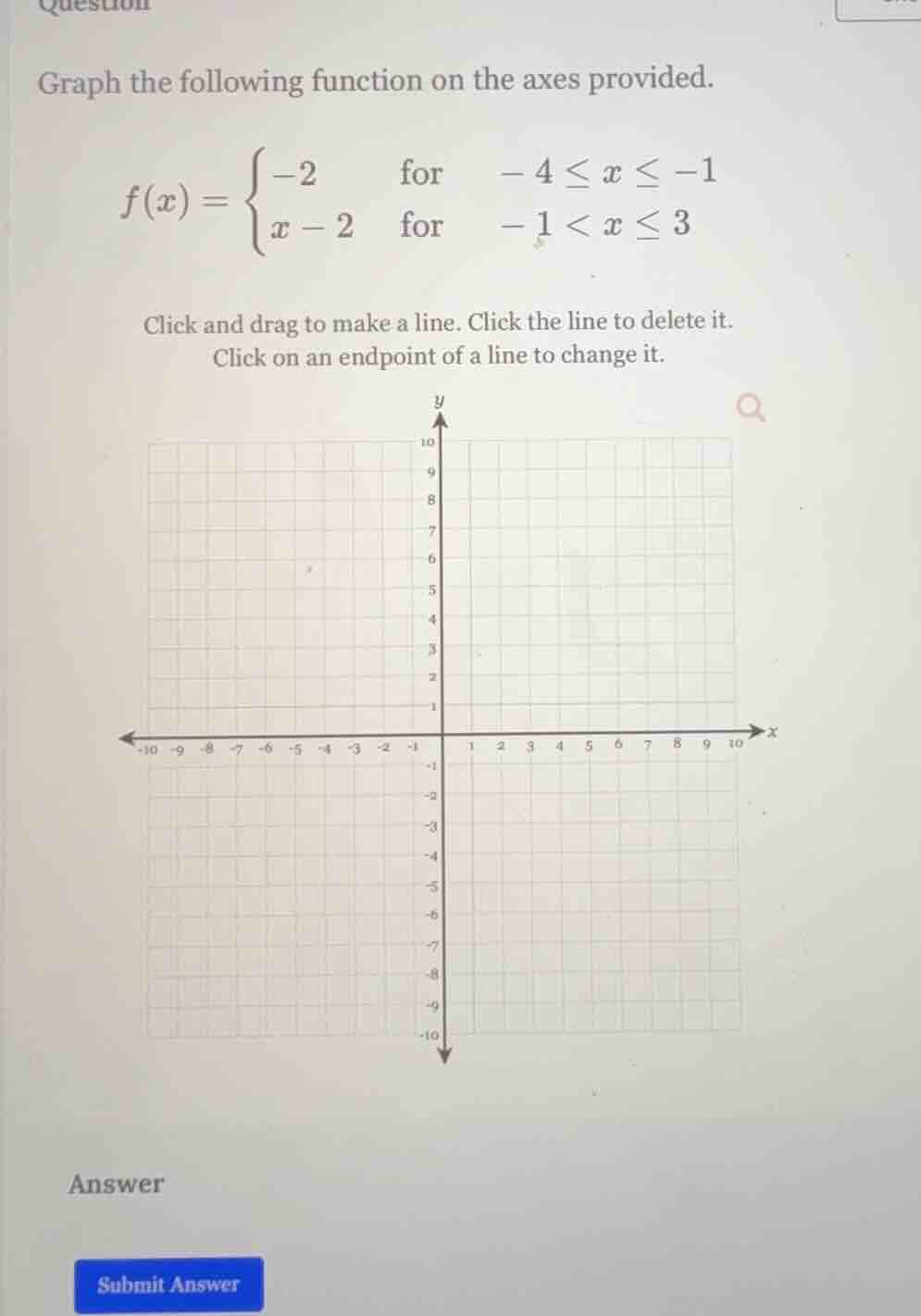

graph the following function on the axes provided.
$f(x) = \

$$\begin{cases} -2 & \\text{for} & -4 \\leq x \\leq -1 \\\\ x - 2 & \\text{for} & -1 < x \\leq 3 \\end{cases}$$

$
click and drag to make a line. click the line to delete it.
click on an endpoint of a line to change it.
(there is a coordinate plane graph here, with x - axis from - 10 to 10 and y - axis from - 10 to 10, with grid lines.)
answer
submit answer

Explanation:

Step1: Graph the first piece ($f(x) = -2$, $-4 \leq x \leq -1$)

This is a horizontal line. Find the endpoints: when $x = -4$, $f(-4) = -2$; when $x = -1$, $f(-1) = -2$. So plot the points $(-4, -2)$ and $(-1, -2)$ and draw a horizontal line segment between them. The endpoint at $x = -1$ is closed (since the inequality is $\leq$), so it's a solid dot.

Step2: Graph the second piece ($f(x) = x - 2$, $-1 < x \leq 3$)

This is a linear function. Find two points: when $x = -1$ (open circle, since $x > -1$), $f(-1) = -1 - 2 = -3$ (open dot at $(-1, -3)$); when $x = 3$, $f(3) = 3 - 2 = 1$ (closed dot at $(3, 1)$). Also, we can find another point, e.g., when $x = 0$, $f(0) = 0 - 2 = -2$ (point $(0, -2)$). Draw a line segment from the open dot at $(-1, -3)$ through $(0, -2)$ to the closed dot at $(3, 1)$.

Answer:

To graph the piecewise function:

1. For \( -4 \leq x \leq -1 \): Draw a horizontal line segment between \( (-4, -2) \) (closed dot) and \( (-1, -2) \) (closed dot).
2. For \( -1 < x \leq 3 \): Draw a line segment from the open dot at \( (-1, -3) \) through \( (0, -2) \) (or other points) to the closed dot at \( (3, 1) \).

(Note: In the interactive graph, use click-and-drag to create these segments, adjusting endpoints as needed.)
